Lamination Film Specifications
Typical supply range for Jin Yu cold and thermal laminating film. Custom widths, adhesives, cores and private-label packaging available on request.
| Parameter | Cold Laminate (pressure-sensitive) | Thermal Laminate (heat-activated) |
|---|
| Film thickness | 25-75 µm (1-3 mil) | 25-75 µm (1-3 mil) |
|---|
| Adhesive | Pressure-sensitive acrylic, no heat | EVA, activated by heated roller |
|---|
| Lamination temperature | Room temperature (15-30 °C) | 90-110 °C |
|---|
| Base film | PVC / PET | BOPP / PET |
|---|
| Finish options | Gloss, matte, satin, 3D texture | Gloss, matte |
|---|
| Standard roll width | 0.914 / 1.07 / 1.27 / 1.52 m | 0.914 / 1.07 / 1.27 / 1.52 m |
|---|
| Roll length | 50 m / 100 m | 50 m / 100 m |
|---|
| Outdoor durability | 2-3 years | 3-5 years |
|---|
| Typical applications | Vehicle graphics, floor graphics, mounted prints | Menus, maps, counter graphics, high-traffic signage |
|---|
| MOQ | 1 roll, mixed widths allowed | 1 roll, mixed widths allowed |
|---|
| Lead time | 7-15 days | 7-15 days |
|---|
Widths up to 1.6 m, 1-inch and 3-inch cores, and OEM packaging are available on request.
Figures above are typical supply ranges. Confirm thickness, adhesive and release liner with our team before ordering - values vary by finish and substrate.
How to Choose: Cold vs Thermal Lamination
Choose cold laminate when the print cannot take heat
Vehicle wraps, floor graphics, and anything already mounted on rigid board. Cold film bonds with pressure-sensitive adhesive at room temperature, so there is no risk of shrinking, curling or ink re-melt.
Choose thermal laminate for the hardest wearing surface
Heat-activated EVA bonds into a tighter, more scratch-resistant layer - the right choice for menus, maps, counter graphics and anything cleaned or handled daily.
Match the finish to the viewing distance

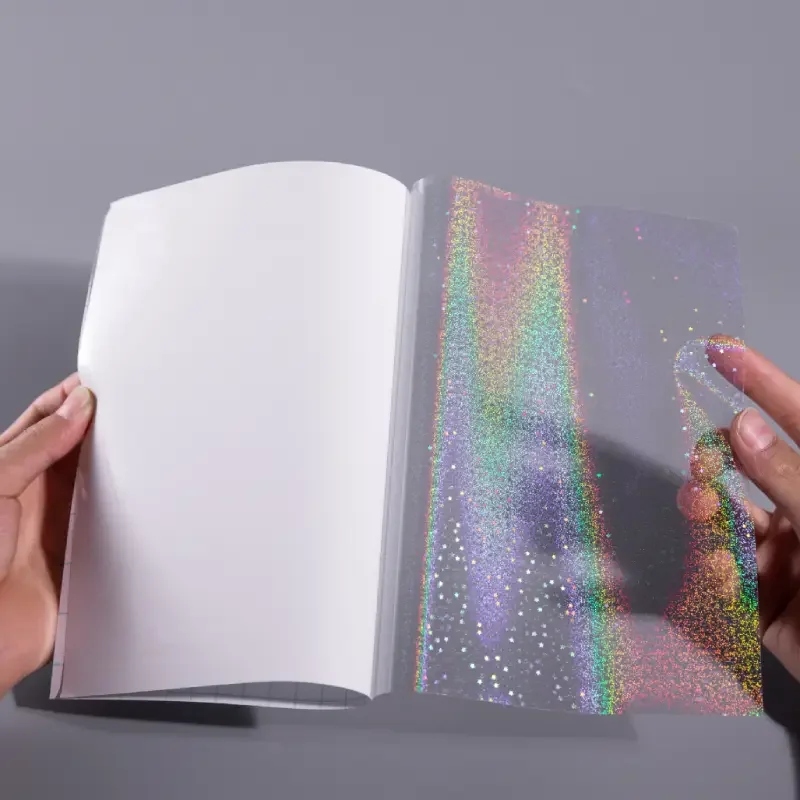

Gloss deepens colour and suits photo prints and retail graphics. Matte kills glare under shop lighting. Satin sits between the two, and 3D textured film adds a tactile surface for exhibition and premium packaging work.
Order 10-15% more film than the print
Laminating wastes more material than printing - trim, alignment and re-dos add up. On a 50 m job, budget a spare 5 m rather than stopping mid-run.
